TMC-1230 Fire Protection Fluid is a direct replacement for 3M Novec® 1230. TMC-1230 vaporizes quickly when released, is non-corrosive and not electrically conductive, so that sensitive electronic systems such as data centers, server rooms, telecommunications or other equipment are not damaged. It does not leave any damaging residues, so the systems do not have to be cleaned and remain up and running.

Because TMC-1230 is stored as a liquid and discharged as a gas, it can be transported by air to help enable quick refills. Each shipment includes a TMC Certificate of Analysis verifying the product has been tested to meet both TMC internal and NFPA 2001 (2022 edition, section A.5.1.2.3) standards for quality.

Waterless fire extinguishing clean agent
Leaves no residue
Electrically non-conductive, helping protect energized electronics
Global Warming Potential (GWP) = <1
Ozone Depletion Potential (ODP) = 0

APPLICATIONS

TMC-1230 is a chemically identical replacement for Novec™ 1230 with specific properties suitable for Fire Suppression where non-flammability and environmental concerns are important.

Data Centers and Server Rooms
Telecommunication and Broadcast Facilities
Hospitals and Laboratories
Clean Rooms and Semiconductor Manufacturing
Military and Marine Fire Suppression Systems
Museums, Archives, and Libraries

PHYSICAL PROPERTIES COMPARISON

Property	3M™ Novec™ 1230	TMC-1230
CAS #	756-13-8	756-13-8
Boiling Point	120 F°/ 49°C	120°F / 49°C
Pour Point	-162°F / -108°C	-162°F / -108°C
Specific Gravity	1.60 g/mL @ 25°C	1.60 g/mL @ 25°C
Vapor Pressure	41kPa / 308 mmHg @ 25°C	41kPa / 308 mmHg @ 25°C
Critical Temperature	336°F / 169°C	336°F / 169°C
Critical Pressure	1.88mPA	1.88mPA
Viscosity	0.64cPs @ 25°C	0.64cPs @ 25°C
Specific Heat	1103 J/kg-K@ 25°C	1103 J/kg-K@ 25°C
Latent Heat of Vaporization @ Boil Point	88-kJ/kg	88-kJ/kg
Dielectric Constant	1.8 @ 1kHz	1.8 @ 1kHz
Dielectric Strength @ 0.1'' gap	48kV	48kV
Flash Point	None	None
Molecular Weight	g/mol	316
GWP	1	1
ODP	0	0

ENVIRONMENTAL PROPERTIES

Compare to the Environmental condition of Perfluoro(2-methyl-3-pentanone) and Halon and part of the other products.

Formulas	C3F5(O)CF(CF3)2	CF3Br	CF2ClBr	CF3CHFCF3	CF3CH2CF3
ALT (Year)	0.014	65	11	33	220
GWP	1	6900	1300	3500	9400
ODP	0	10	4	0	0

MATERIALS COMPATIBILITY

Experiments show that TMC-1230 with other materials, such as rubber, metal, has good compatibility, and little impact on a variety of materials used.

Compatibility Data

Material	Compatibility	% Change in Volume	% Change in Weight
EPDM	1	-0.27	0.77
Silicon rubber	1	-2.53	-1.72
Neoprene	1	-1.36	-0.64
PTFE (Teflon 1705)	1	2.71	1.37
Nitrile	1	-0.10	1.05
HDPE	1	-0.15	-0.28
Polyamide nylon 6xt	1	/	-1.28
Polyvinylchloride (PVC)	2	-0.15	0.18
Viton	2	7.11	6.56
Polyurethane (PU)	1	0.45	0.09

Remarks:

“/”: the seal swells when immersed with product but becomes normal again when dried.
Score values: 1 – No effect; 2 – Limited affected; 3 – Severe damage

Incompatible Materials: Strong bases, amines, and alcohols

COMPLIANCE

FM Global - Category: Fixed Extinguishing Systems, Clean Extinguishing Agents
UL Certification - Standard: ANSI/UL 2166, Halocarbon Clean Agent Extinguishing Systems
ISO 14520
NFPA 2001

FIRE EXTINGUISHING CONCENTRATION

TMC-1230 has excellent fire performance, and its fire extinguishing concentration for class A is only 3.5%, its fire extinguishing concentration for class B is only 4.5% which is the closest to the halon, and it is far less than other fluoroalkane halon substitute. It can save A, B, C fires, non-conductive, immediate gasification after the injection, and no residue.

The extinguishing concentration of TMC-1230 and halon 1301 and part of fluorine alkane halon substitute.

	TMC-1230	Halon 1301	HFC-227ea	CO2
Extinguishing Concentration (%)	4-6	5	7.5-8.7	30-75

FIRE SUPPRESSION

Clean Agent Fire Protection	TMC-1230 is touted as a clean agent fire protection system. Clean agents are designed to extinguish fires without leaving behind harmful residues, making them suitable for protecting sensitive environments like data centers, museums, or places with valuable electronic equipment and documents.
Rapid Fire Suppression	TMC-1230 can extinguish fires in seconds, which is significantly faster than traditional water-based fire suppression systems. Rapid fire suppression can help minimize damage and prevent the spread of fires more effectively.
Waterless Solution	TMC-1230 is categorized as a waterless fire suppression solution. This means it doesn’t rely on water to extinguish fires, avoiding potential water damage to sensitive equipment or materials.
Residue-Free	One of the advantages of clean agent fire suppression systems is that they leave no residue after extinguishing a fire. This is crucial for protecting irreplaceable items like paper documents and electronics, as there is no cleanup or damage caused by residues.

PACKAGING

1 Gallon Jug (12lb/5.4kg)

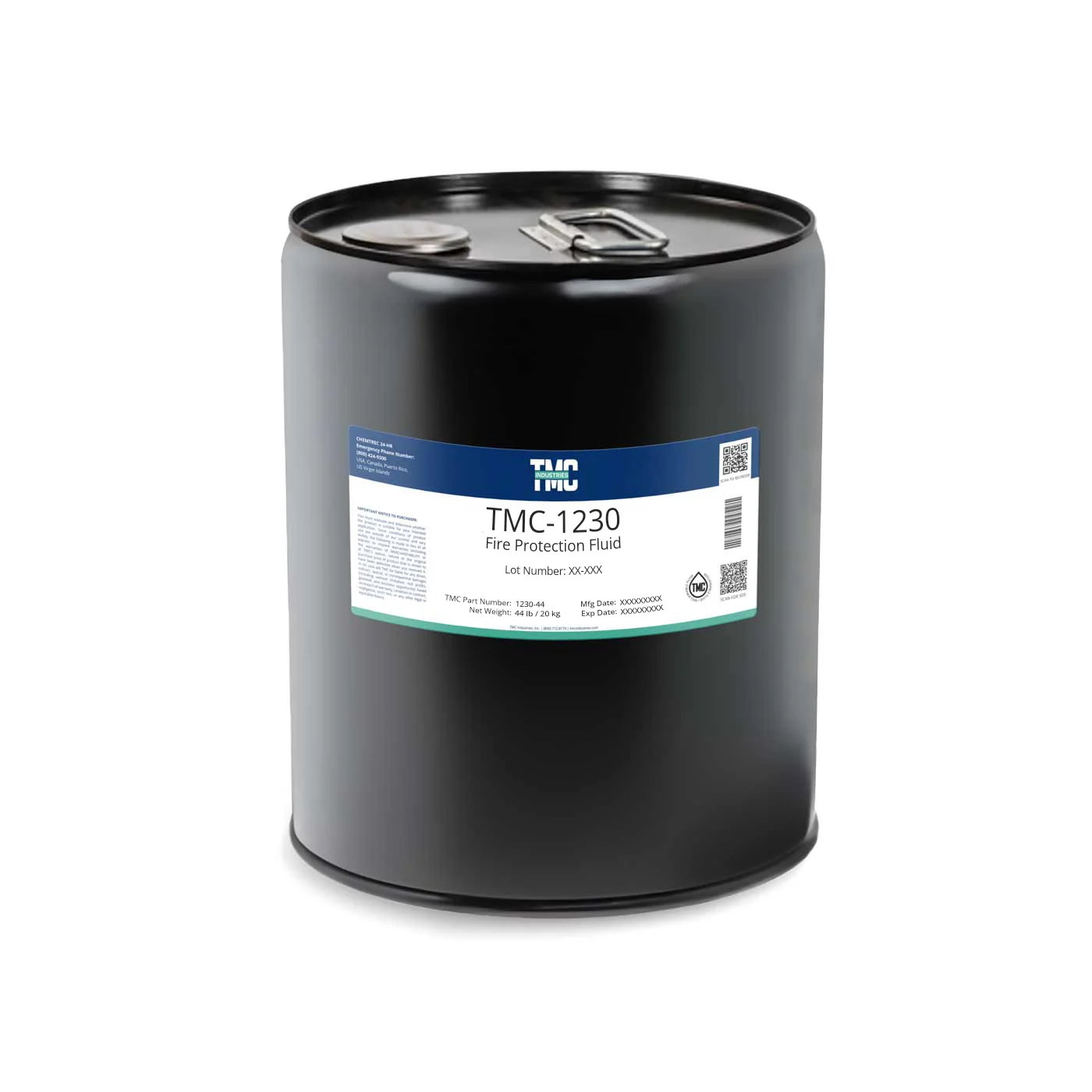

5 Gallon Pail (44lb/20kg)
55 Gallon Drum (550lb/250kg)
275 Gallon Tote - Available Upon Request

STORAGE AND HANDLING

Store at temperatures not exceeding 38°C/100°F Store away from strong bases and amines. Protect from sunlight, and store in a well-ventilated place.

SHELF LIFE & STORAGE

Shelf life is 60 months from the date of manufacture when stored in the original packaging materials and stored under normal conditions. TMC will re-certify material every 5 years up to 20 years.

DISPOSAL AND RECYCLING

This fluid can be recycled and reused. Help protect the environment, and don't pay for expensive disposal services. TMC Industries can reclaim your used fluorinated fluids, restoring them to like-new condition, and save you up to 50% in replacement fluids while protecting the environment, or TMC will recycle your fluid free of charge (conditions apply).

TMC Reclaimed Fluids are tested to meet new product specifications. It will be clear and odorless, and a Certificate of Analysis is issued with every order.

TMC Industries offers a 100% satisfaction guarantee on all of our reclaimed fluids. We back this up with a no questions asked refund policy. To learn more, click HERE.
